• Point-of-Use shower filter at the Point-of-Care

    i3 TWO for protection against waterborne pathogens while showering

    The i3 TWO Point-of-Use (POU) water filter is used in medical settings at the Point-of-Care to prevent infections caused by bacteria such as Legionella pneumophila, Pseudomonas aeruginosa and non-tuberculous mycobacteria (NTM). It is used as a shower head for the microfiltration of piped water.

    • Assists prevent infections caused by waterborne pathogens from water pipes

    • Effective protection in areas where aerosols are generated

    • Specifically developed to protect immunocompromised and immunosuppressed patients

    • Especially relevant in oncology, neonatology, transplant and intensive care units
    i3 TWO i3 TWO | U.S.

    The number of healthcare-associated infections (HAIs) caused by resistant gram-negative pathogens has risen sharply in recent years. Medical water filters using the latest technologies are highly beneficial both in the acute control of outbreaks and in the prevention of nosocomial infections.

    They form a barrier between the patient and contaminated drinking water. All waterassociated bacteria are retained. The evidence for Point-of-Use water filters has been extensively documented by numerous scientists in recent years.

    i3 TWO

    cropped-i3two-connect
    Request Information

    Use of the filter prevents possible infections, such as pneumonia, inflammation of the urinary tract, postoperative wound infections or infections of the bloodstream. These infections are caused by waterborne (gram-negative) pathogens such as Pseudomonas aeruginosa or Legionella pneumophila and can have significant adverse consequences in immunocompromised or immunosuppressed patients.

    The filter is used for targeted infection prevention within the meaning of Section 23 Paragraph 3 of the German Infection Protection Act [IfSG] and is employed at the shower Point-of-Use for cleansing wounds, washing patients and surgical hand washing, and is utilized where patients, users and third parties run the risk of possible exposure to opportunistic and obligate pathogens.

    These Point-of-Use water filters are CE-marked Class I medical devices and fulfil all the requirements of the EU Medical Device Regulation (MDR).

    The i3 TWO connect has a quick-release connector which permits rapid and secure changes of filter on the shower hose.

    Information about the relevant quick-release couplings and adapters is available in the Accessories Catalog under the Accessories tab.

    The i3 TWO direct has a standard screw thread (1/2″) which allows it to be fitted on the shower hose without accessories.

    • Bacterial retention as per ASTM F838

    • Effective protection from retrograde contamination

    • Proven biocompatibility for user protection and patient safety

    • Reliable water filtration with a nominal pore size of 0.2 µm (microfiltration)

    • High, stable flow rate throughout the duration of use
    Flow rate 15 L/min at 5 bar (initial)
    Bacterial retention > 7 log per cm2 (Brev. Dim.) per cm2 filter area
    Authorized for use with drinking water Plastics suitable for use with drinking water as per BS 6920
    Disinfection Can be disinfected by wiping with normal surface disinfectant
    Operating pressure max 5 bar
    Operating temperature 60 °C (max 70 °C for 30 mins)
    Duration of use 50 days (7 weeks)
    Membrane i3 high performance flat membrane
    Material authorization Product is biocompatible as per ISO 10993-1
    Shelf life 5 years
    Chlorine resistance ≤ 200 ppm active chlorine for 1 hour; ≤ 10 ppm active chlorine for 50 days
    Attachment i3 TWO connect: Quick-release coupling is required for installation.
    i3 TWO direct: G1/2“ screw thread (no items required for installation)
    Labelling Serial number / DataMatrix Code for documentation of filter changes
    oblique-i3two-connect

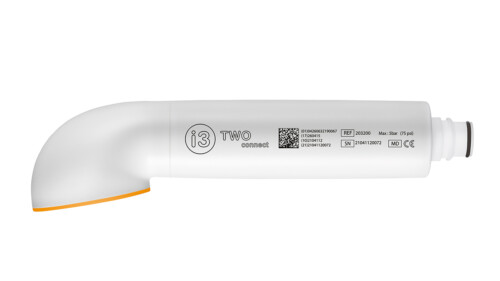

    side-i3two-connect
    oblique-i3two-direct
    side-i3two-direct

    i3 TWO | U.S.

    Request Information

    These i3 TWO Point-of-Use water filters are a FDA cleared medical devices class II.

    The intended use of the i3 TWO POU water filters is to filter EPA quality drinking water. They retain bacteria in water which may aid in infection control. The filters produce water that is appropriate for washing and drinking, superficial wound cleansing (minor cuts, scrapes and abrasions), cleaning of equipment used in medical procedures and washing of hands. The water filters are not intended to provide water that can be used as a substitute for USP grade sterile water.

    The i3 TWO connect has a quick-release connector which permits rapid and secure changes of filter on the shower hose.

    Information about the relevant quick-release couplings and adapters will be available soon in the Couplings Catalog under the Couplings tab.

    The i3 TWO direct has a standard screw thread (1/2″) which allows it to be fitted on the shower hose without couplings or adapters.

    • Sterilizing grade membrane with a double layer pore size of 0.6 µm and 0.2 µm (microfiltration)

    • Protection due to the bacteriostatic properties of the filter housing in accordance with ISO 22196

    • Proven biocompatibility to protect the user

    • Filter surface can be disinfected by wiping

    • High, stable flow rate throughout the duration of use

    • Irrigation of wounds (minor cuts, scrapes and abrasions)
    Flow rate 4.0 gal/min (15 L/min) at 75 psi (5 bar) initial
    Bacterial retention > 7 log per cm2 (Brev. Dim.) per cm2 filter area
    Authorized for use with drinking water Plastics suitable for use with drinking water as per BS 6920
    Extraneous contamination > 4 log Pseudomonas aeruginosa, Escherichia coli, Staphylococcus aureus within 24 hours
    Disinfection Can be disinfected by wiping with normal surface disinfectant
    Operating pressure max 75 psi (5 bar)
    Operating temperature max 140 °F (60 °C) during normal use
    max 158 °F (70 °C) for 30 mins
    Duration of use 50 days
    Membrane i3 High performance pleated membrane
    Shelf life 5 years
    Chlorine resistance ≤ 200 ppm active chlorine for 1 hour; ≤ 10 ppm active chlorine for 50 days
    Attachment i3 TWO connect: Quick-release coupling is required for installation.
    i3 TWO direct: 1/2“ screw thread (no item required for installation)
    Labelling Serial number / DataMatrix Code for documentation of filter changes

    This information will be available soon.

    usa-oblique-i3two-connect
    usa-side-i3two-connect

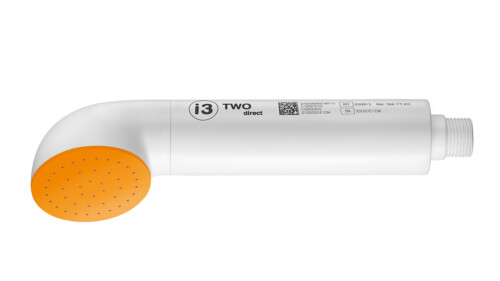

    usa-oblique-i3two-direct

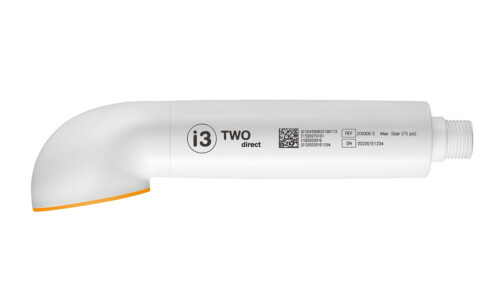

    usa-side-i3two-direct

    Your request, our service!

    Whether you need personal advice or an individual offer – we are here for you. Call us via +49 40 2576748-0 or send us your request for information!

    Send a non-binding inquiry now

    i3 Medical Series of Films

    In these animated films, we present the features and benefits of our medical products.

    Find out what features our compact Point-of-Use water filters have to interrupt potential pathways of contamination right at the point of use. Learn about the benefits of this effective and easy-to-use solution that can directly contain waterborne nosocomial infections directly.

    Also discover the benefits of the i3 trackApp for simple digital filter changes.

    Safe water hygiene in healthcare: How i3 ONE Point-of-Use water filters help prevent infections
    Use of i3 Point-of-Use water filters in the daily routine of healthcare facilities
    Installation of the i3 water filters i3 ONE, i3 TWO connect & i3 TWO direct
    Filter change – digital, efficient & safe – with the i3 trackApp
